Factory Drawings
Door Dimensions
Overall size, door opening and screw holes for all three RV Fuel Vault doors. All sizes are in inches. The hinge is on the left on every door.
| Door | Overall Size | Door Opening | Screw Holes |
|---|---|---|---|
| Small Door | 7-1/4″ W × 6-7/8″ H | 4-7/8″ W × 5-1/8″ H | 12 |
| Large Door | 7-1/8″ W × 8-1/8″ H | 4-7/8″ W × 6″ H | 12 |
| Round Door | 6-1/2″ W × 6-1/2″ H | 4″ W (hinge to latch) × 4-3/4″ H | 4 (top, bottom, left, right) |

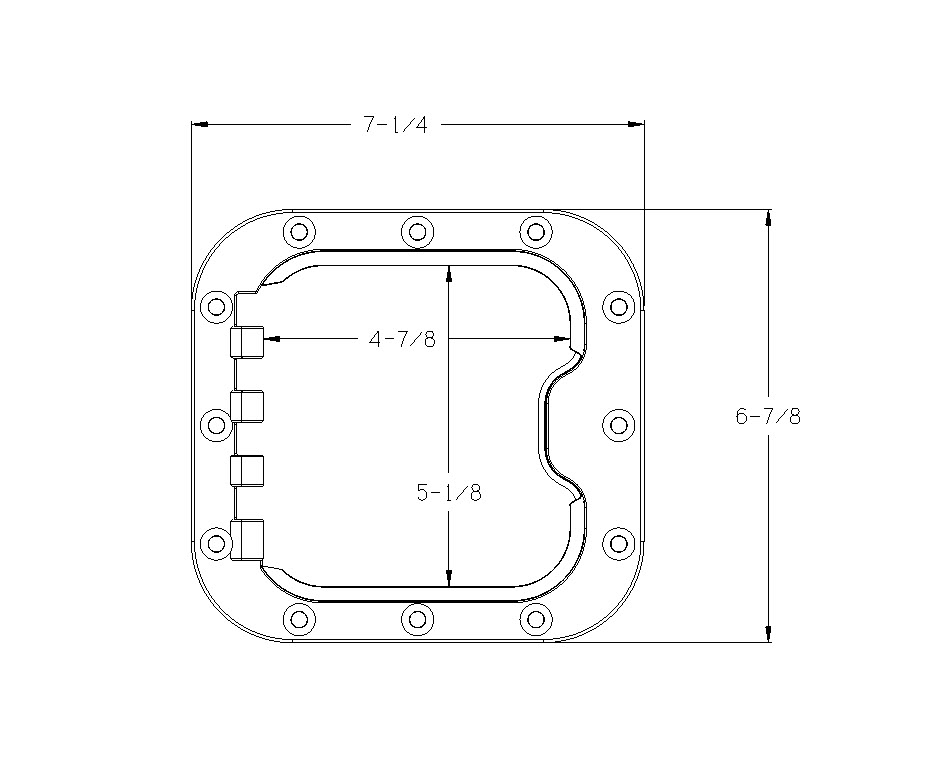

Small Door
RVFV-1001S · 2001S · 3001S
- Overall:
- 7-1/4″ W × 6-7/8″ H
- Opening:
- 4-7/8″ W × 5-1/8″ H
- Screw holes:
- 12

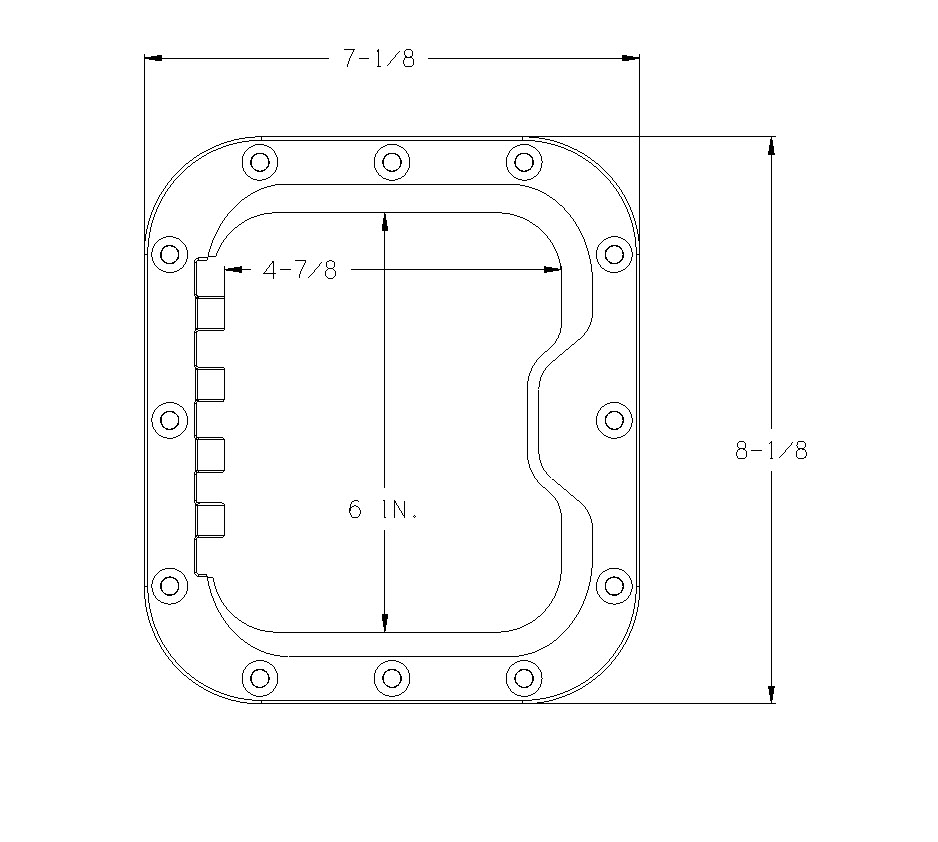

Large Door
RVFV-1002L
- Overall:
- 7-1/8″ W × 8-1/8″ H
- Opening:
- 4-7/8″ W × 6″ H
- Screw holes:
- 12

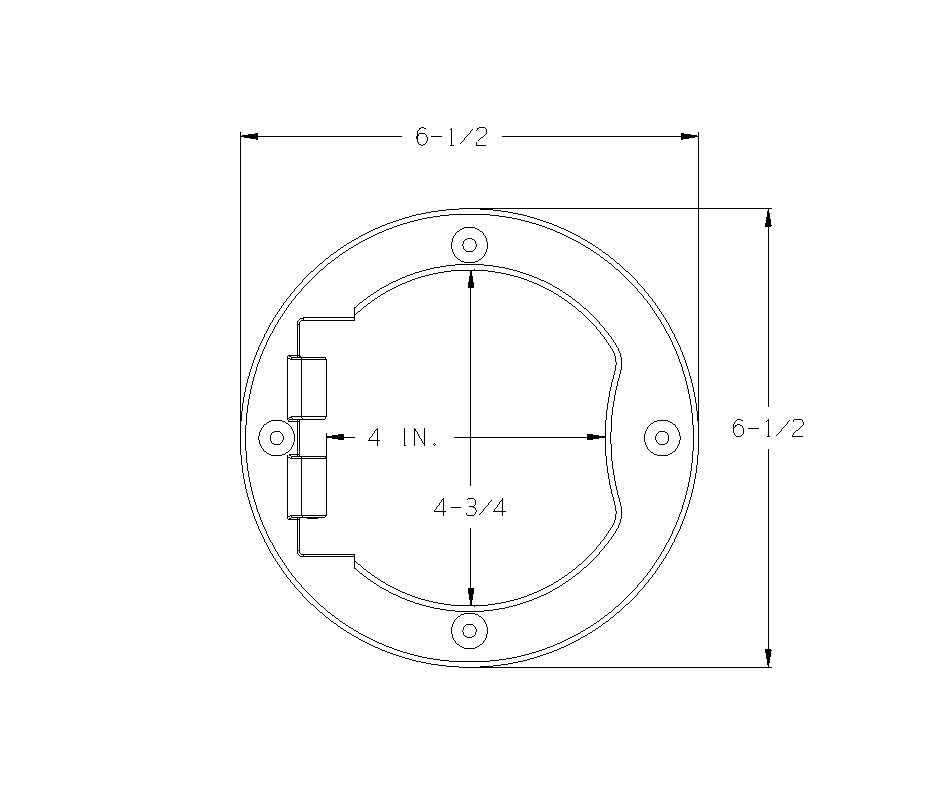

Round Door
RVFV-1001R · 2001R
- Overall:
- 6-1/2″ W × 6-1/2″ H
- Opening:
- 4″ W (hinge to latch) × 4-3/4″ H
- Screw holes:
- 4 (top, bottom, left, right)
Good to know
These are door dimensions, not cutting templates. The RV Fuel Vault is a bolt-on part: it mounts over your existing fuel-port area with the supplied security screws. No drilling, no cutting.
Plastic injection-molded part. 3/16″ High Impact Reinforced Material. Non-corrosive and built to handle UV, salt, diesel, vibration and temperature extremes. Limited Lifetime Warranty.
